Sunday, June 12, 2016

Magazine Boxes, Part 4 - Final joints and assembly

A couple of weeks ago I took a weekend afternoon to cut the final joints in the magazine boxes and glued them up. The final joints went pretty quick since it was just a matter of cutting a number of 1/4" dados and rabbets. It helps that there are only a couple of saw set ups.

My first step is to install a 1/4" dado blade in the table saw. I then clamp a sacrificial fence to my fence which I slide over until it is just touching the dado blade. After setting the blade height to 1/4" I run a couple of test boards through to check my setup.

I then cut the rabbets on the fronts and backs that will hold the sides. These are 1/4" wide by 1/4" deep.

Fronts and Backs
I also run the bottoms through to create rabbets on all four edges.

Bottoms

With my rabbets complete I turned my attention to making the grooves that would hold the bottoms in place. I remove my sacrificial fence and set the table saw fence using the same template I used to shape the feet. This is accurate enough of a method for setting the fence because it is most important to have the grooves all be the same distance from the bottom rather than a specific distance. In the fronts and backs this is a 1/4" deep groove, in the sides it is 1/8". I use scrap to test the cuts and ensure they are the correct depth. I use my template to locate the position of the groove.


All the pieces
With all the joinery complete it was just a simple matter of gluing up all the pieces. The first thing I did was to dry fit the pieces in order to make sure glue up would go smoothly.

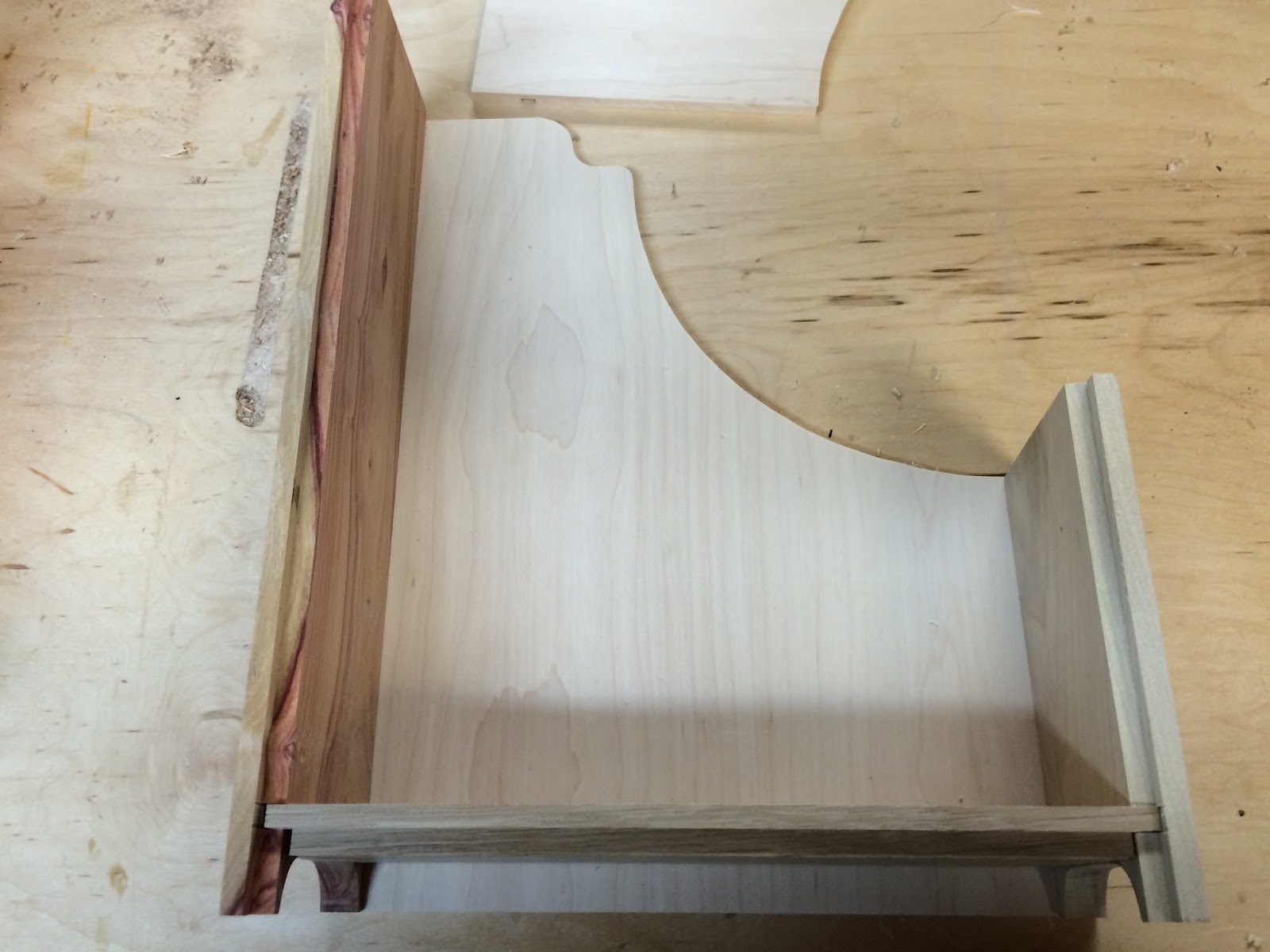

Dry Fit
Often the tongues on the bottoms would be a little thick so I'd use my shoulder plane to shave the thinner until I had a good fit. After I was happy with how all the parts were fitting together I'd glue them up.

Glue up
I used another clamp across the top; however, I took this photo without for better clarity.  After twenty or thirty minutes I removed the clamps and cleaned up the glue squeeze out with a chisel.

The finished boxes got some final sanding and then got move to the finishing room for cleanup.
Assembled boxes (Tulip, Chechen, Cherry, Spanish Cedar, Black Palm)

Next up: Finishing!

Saturday, June 4, 2016

Hexagons, Part 2 - The project and some math!

As I've mentioned elsewhere, my wife paints little plastic and metal figures. Her work area is a folding table that has seen better days. She's also acquired a bunch of materials that are stored in bins that are stacked around the desk. I want to build her a new painting table that includes storage for her paints, brushes and other materials. The focal point will be the top which will be a maple and walnut hex pattern mimicking gaming maps.

Step 1: Make some decisions

Yup, the first step is to make some decisions. I already know I want a thin border of walnut around my maple hexes so that decision is already made for me. The next decision I need to make is the size of the hexagon. If I was making a gaming map I'd make the hexes 1 inch because that's the most common size. However, since this table is going to be used as a hobby workbench and not a gaming table I can make the hexes bigger which will result in fewer pieces so I'll look at making 1 1/2 inch hexes too.

I'm going to build my top as a 1 inch thick butcher block (end grain on top) like in Figure 1 below.

Figure 1: Example hexagonal butcher block

Step 2: Do some calculations

As Jack Burton says in Big Trouble in Little China, "This is going to take some crackerjack timing, Wang." In this case it is going to take some crackerjack setup. One trick to precision is to not change the settings on the tools in the middle of the process because they'll never go back to the exact same spot and tiny errors accumulate. Since I cannot go back and make more hexagons if I run short, I want to make sure I have all the material I'll need for the table and then a little more for tests and waste.

To figure out how much wood I need I could try to just calculate the total board feet of the completed table top; however, my process for making the hexagons creates a fair bit of waste so I need to take that into account. My basic process will be to calculate the number of hexagons I'd need to fill the surface of the table, then multiply that times the length of each hexagonal block plus some for waste.

Step 2a: Calculate number of pieces needed for table top

My plan for the table gives it a top surface area of 30 in x 60 in = 1800 in2.

A hexagon with a height of 1 inch has an area of 0.866 in2.  That works out to about 2100 pieces to glue up into the table top. Yikes!

A hexagon with a height of 1 1/2 inch has an area of about 1.95 in2. For my table top that works out to about 925 pieces. That would be a lot less daunting. I think I'll go with 1 1/2 inch hexes.

How did I figure out the area of a hexagon? I'd like to say I remembered my geometry; but, that wouldn't be true. I'd like to say I figured it out the hard way by breaking the hexagon into a square and some triangles; however, that wouldn't be true either. In actual fact I used a web application that did the math for me.

Step 2b: Calculate total length of maple needed

Since 1.5" high hexes look like the winner I know I'm going to need 925 hexagonal pieces 1 inch long (the thickness of the table top).

But I'm not done.

I also need to calculate the waste for the width of the saw blade when I separate the pieces from the column. For a small number of cuts it probably wouldn't make that much difference but I'm going to be making over 900. My saw blade is about 1/8 inch in width so each little hex block is going to require 1 inch plus the 1/8 inch saw blade kerf.

This is a bit easier to calculate. I need 925 pieces  that are effectively 1 1/8 inches in length which comes to 1050 inches.

I may as well do my waste calculation now too and add 30% more for waste which brings my total length to 1365 inches or about 115 feet.

Step 2c: Calculate the total quantity of maple needed

My process for cutting a hexagonal column involves first cutting a rectangular blank and then clipping the corners. To figure out the size of the blank I need to know both the height of the hexagon and the diagonal. For a 1 1/2 inch high hex the diagonal is just under 1 3/4 inch.

Figure 2: Hexagon Blank with Numbered Sides
Figure 2 shows how I'll get a hex out of a rectangular block. It is basically just a process of removing the wood shown in grey.

My total maple purchase needs to be:
    height * width * length   =   1.5 in * 1.75 in * 1365  in   =   3583 in3   =  25 bf

Twenty five board feet at current rates for maple ($6.40/bf) is going to cost me around $160. Making custom furniture isn't cheap.

Step 2d: Calculate how much walnut is needed

Figuring out the amount of walnut needed is quite a bit easier. My final walnut border around each hex is going to be between 1/32 inch and 1/16 inch but I'll probably make my walnut strips by ripping 1/8" strips from a board that is thicker than the length of the side of the hexagon.

I got the length of the side of the hexagon from my calculations above and for a 1 1/2 inch hexagon it is 0.866 inch. I'm thinking if I can buy a 5/4 rough walnut board the strips I rip off it will be plenty wide.

I'll need six strips - one for each side - as long as my hexagonal maple column [ 1365 in ]. I'll probably actually rip the strips a little thinner than 1/8 inch but that works well for rough calculations. I also need to figure in waste from the saw blade kerf which is another 1/8 inch.

Total walnut needed:
  (strip + kerf) * length of hexagon * 6 = (1/8 in + 1/8 in) * 1365 in * 6 = 2050 in2

I'll need 30% waste here too so that works out to 2665 in2 or 24 bf of 5/4 walnut. At current rates ($9.95) it is going to cost me $230. Yeash...  could be worse... Wenge is going for almost twice that.

Step 3: Shopping list

I've done a lot of calculations but thankfully my shopping list is going to be much simpler.

I know I need 114 linear feet of maple that is 1 1/2 inches by 1 3/4 inches. The easiest way to get that is to buy 8/4 maple and rip it into 1 3/4 inch wide blanks. This simplifies things because I know I can get a blank out of every 2 inches of width so if a board is 6" wide I'll get three rough blanks out of it. If the board is twelve feet long that means I'd be getting 36 linear feet of maple blanks out of that 6" wide board.

My walnut strips are going to be ripped out of a 5/4 board 1/8 inch thick. This is going to be the same kind of calculation above. I can get one strip for every 1/4 wide the board is. I need six times the length of the maple which means I need about 684 linear feet of strips. If I get a six inch wide board that is twelve feet long I'll get 288 linear feet of walnut strips.

The shopping list:

  • 8/4 maple - 114 feet x 2"
  • 5/4 walnut - 684 feet x 1/4"


Easy Peasy!

That was a lot of work but at least I know how much it's going to cost me and how much maple and walnut I need to buy.
